Tandem Axle

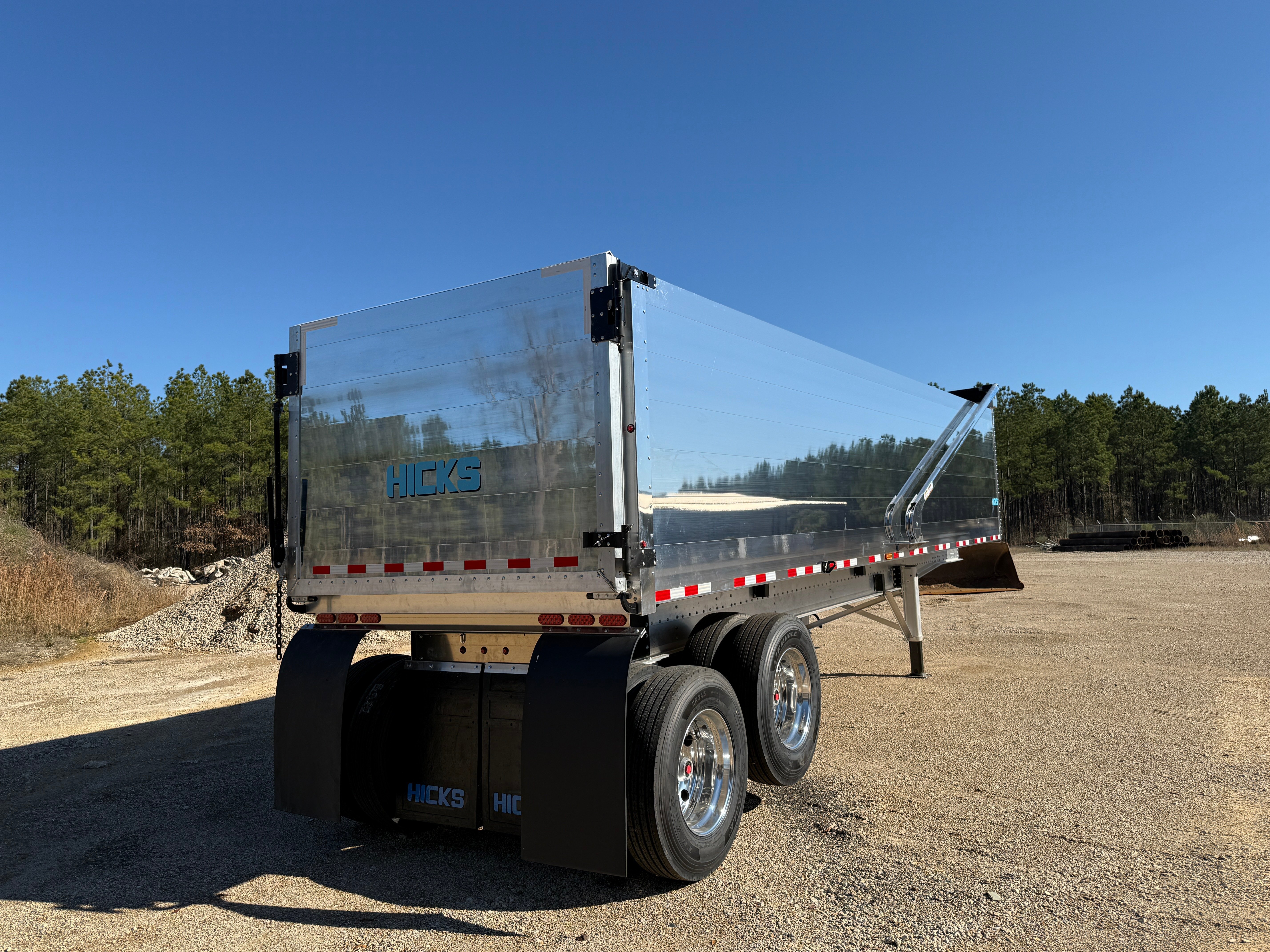

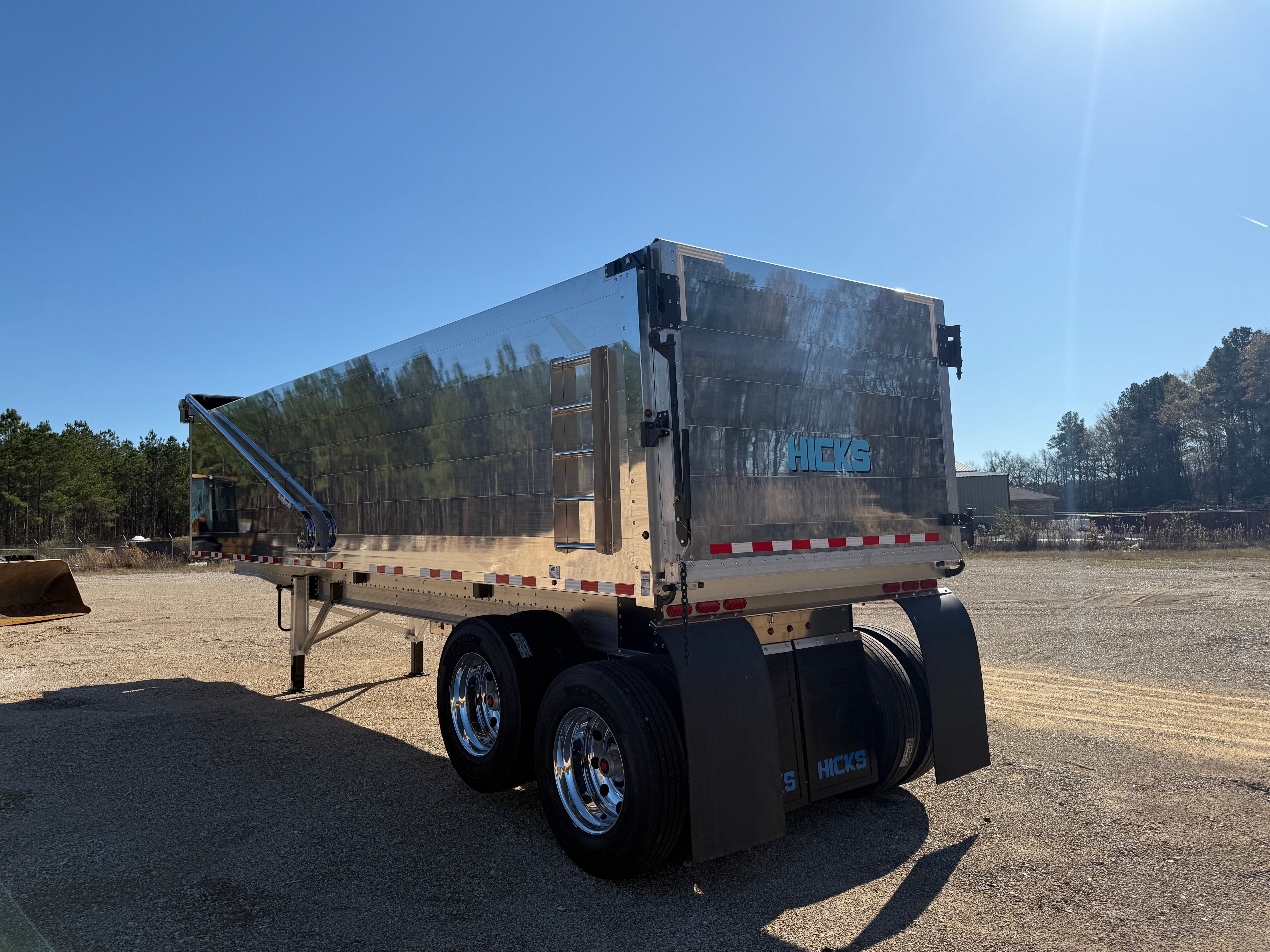

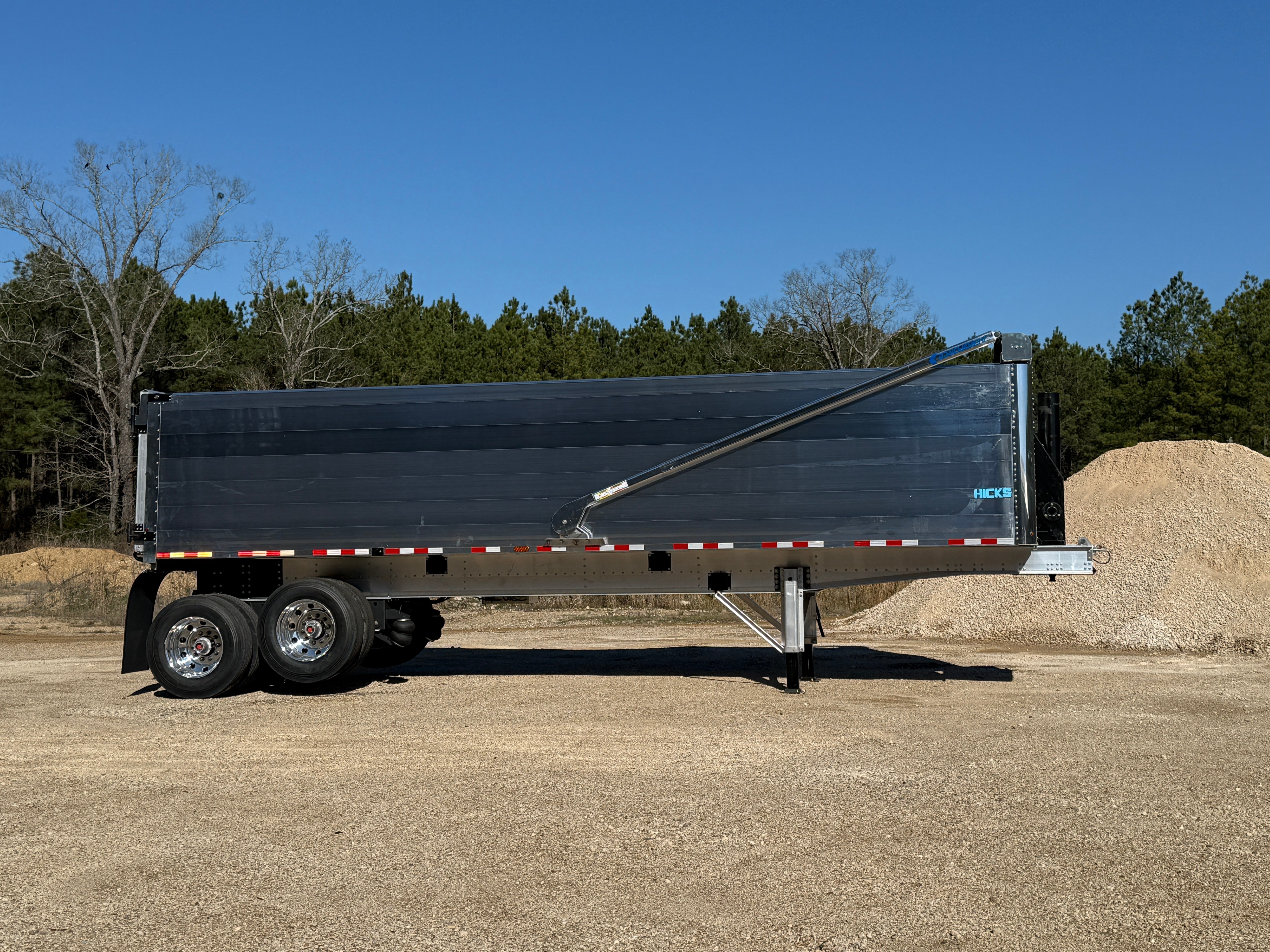

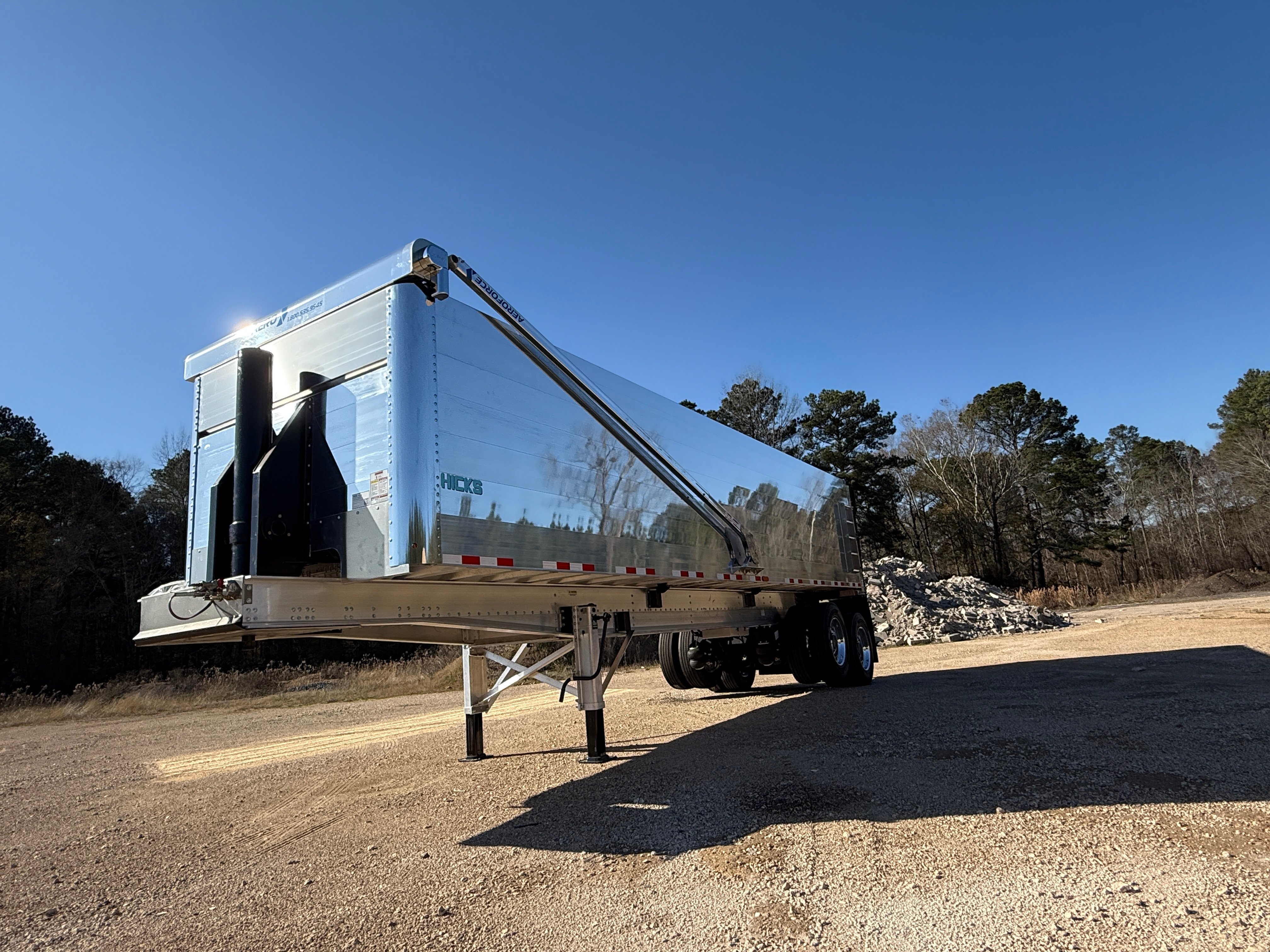

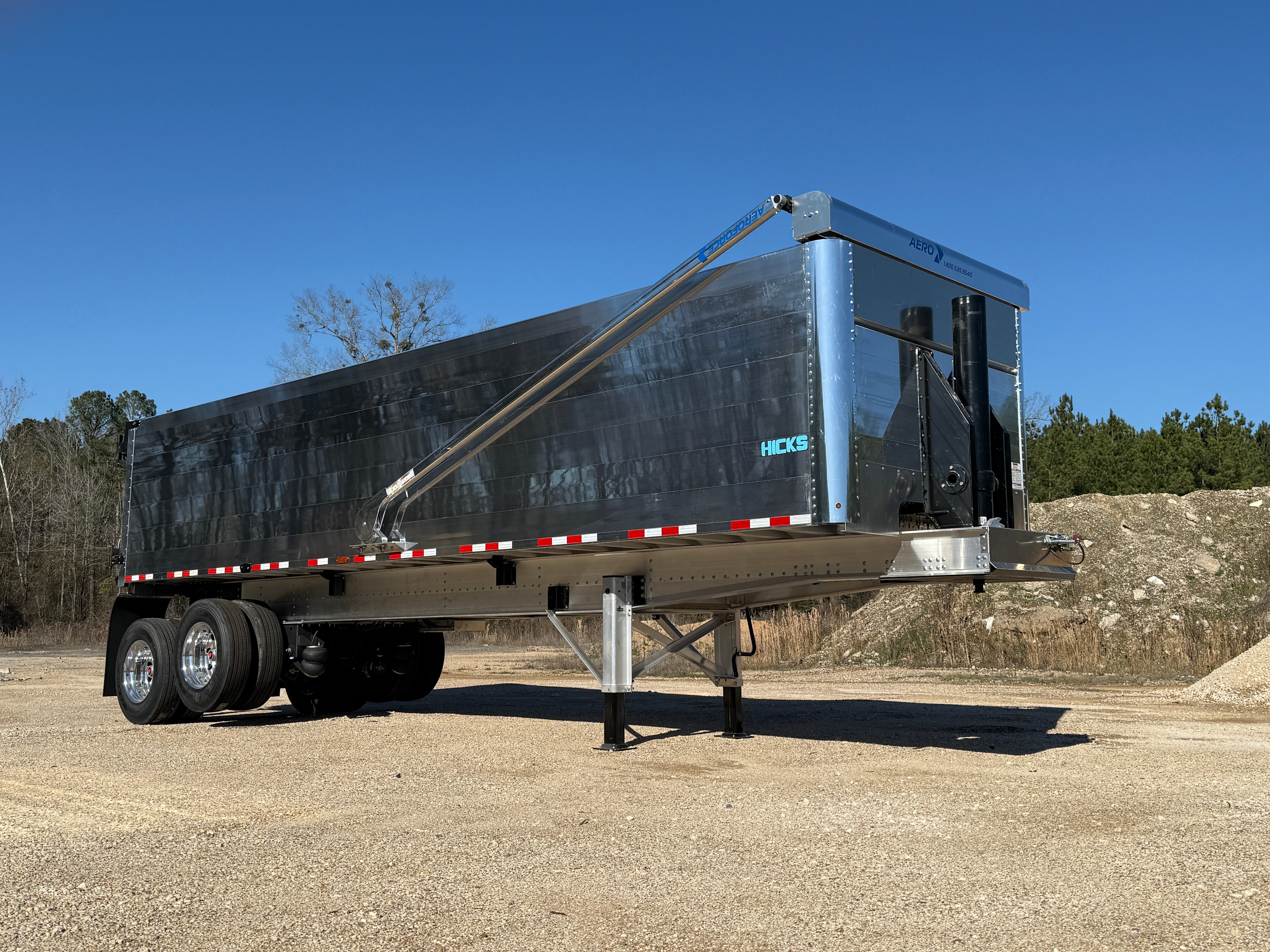

Mississippi Frame Shorty 24-Ft

FL2431

As good as Mississippi short ribs, this frametype trailer hits the spot for hauling in Mississippi. This frametype tandem axle is a featherweight model. The patented design provides the highest yield strength in the industry. Its feature package provides the necessities most haulers need and is ready to maximize your payload.

  • Tare Weight8,152 lb
  • Capacity31 Yards
  • Body TypeFL2431
View all technical specs

Get a Quote Now

SELECT AND CLICK TO ADD YOUR OPTIONAL FEATURES. SCROLL DOWN TO REVIEW.

Technical Specs

Key Features

Bolted Body with Superior Strength
Manual Lift Axle
Switch and Valve Cartridge
Ridewell RAR266 Suspension
Aluminum Wheels
Aluminum Stiff Legs
LED Lights
Controls Run to the Cab
Lightweight Frame

Optional Features

UHMW Extra Wide Liner
UHMW Floor Liner
Automatic Lift Axle
Disc Brakes
Tire Inflation System
2-Speed Landing Gear
Grain Gate w/Screw Locks
Screw Locks
Full Flaps
Aluminum 22.5”
Aluminum 24.5”
Aluminum Super Single
Alcoa Dura-Bright 22.5”
Alcoa Dura-Bright 24.5”
Alcoa Dura-Bright Super Single
Galvanized Hangars
Aero Force Flip Tarp
Roll Rite Single Cable Slide Tarp
Roll Rite Electric Side Roll Tarp
Mountaintarp Manual Side Roll - Vinyl
Mountaintarp Tarp N Go - Mesh
Mountaintarp Tarp N Go - Vinyl
4- Way Electric Over Air Tailgate Control
6-Way Electric Over Air Tailgate Control
4-Way Electric Over Air Lift Axle Control
6- Way Electric Over Air Lift Axle Control
Air-Lift Tailgate
Clearance Lights Rear Post
Extra Marker Lights Bottom of Sides
Extra Marker Lights Top of Sides
Air-Weigh LoadMaxx Plus
Air-Weigh Quickload Plus
Splash Guards
Inside Steps
Wood Boards - 6"
Push Blocks
Air Cab Kit
Document Holder
Spreader Chain on Tailgate
Rear Apron

Dimensions

Body Type
FL2431
Capacity
31 Yards
Inside Width
93"
Inside Length
22'
Side Height
54"
Nose Height
60"
Tailgate Height
54"
TG Slope
15 Degrees
Kingpin to Rear Axle
250"
Kingpin Setting
-7.5"
Draft Arms
Kingpin to Stiff Legs
92"
Suspension
Ridewell RAR266
Axle
77.5” Track, 5.75 Dia, .394”Wall
Wheel Size
8.25x24.5
Tire Size
11R24.5
Hoist Size
8” Trunnion Mount
Tare Weight
8,152 lb
